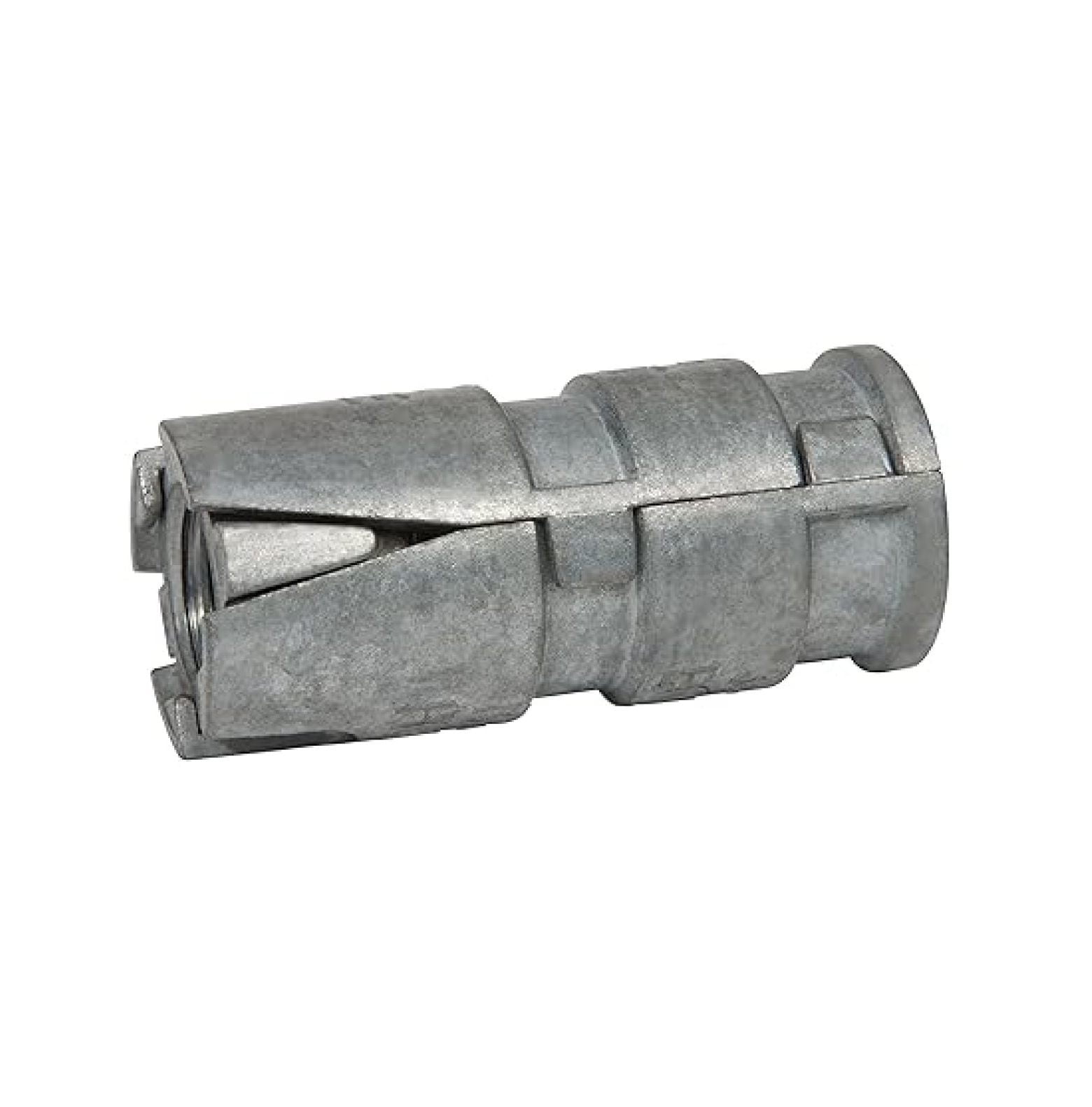

3/4" (Inside/Screw 3/4" Diameter) Single Expansion Anchor (10 per Box)

ApplicationsThe anchor is made from Zamac . This anchor is designed for use in Concrete, Block, and Brick.EnvironmentThe anchor is designed for use in a Moist environment.Hole Diameter/Bit DiameterThe anchor requires a 1-1/4" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.Minimum EmbedmentThe minimum anchor embedment into the concrete is 2-3/4". Therefore, the anchor must be installed so that a minimum of 2-3/4" of the anchor is embedded into the concrete.Spacing between AnchorsEach anchor must be spaced a minimum distance of 12-1/2" from each other when measured center to center.Edge DistanceIt is very important not to install the anchor any closer than 6-1/4" from an unsupported edge of the concrete.

• PRE-ASSEMBLED-Ready to install; no setting tools required
• READILY ACCEPTS MACHINE BOLTS-Any coarse threaded bolt can be used
• INTERNAL THREADS-Bolt can be removed easily
• BOLT EXPANDS ANCHOR-No need for setting tools; fast and easy to install
• CAN BE INSTALLED IN CONCRETE, BRICK OR BLOCK-Versatile anchor for most masonry applications
