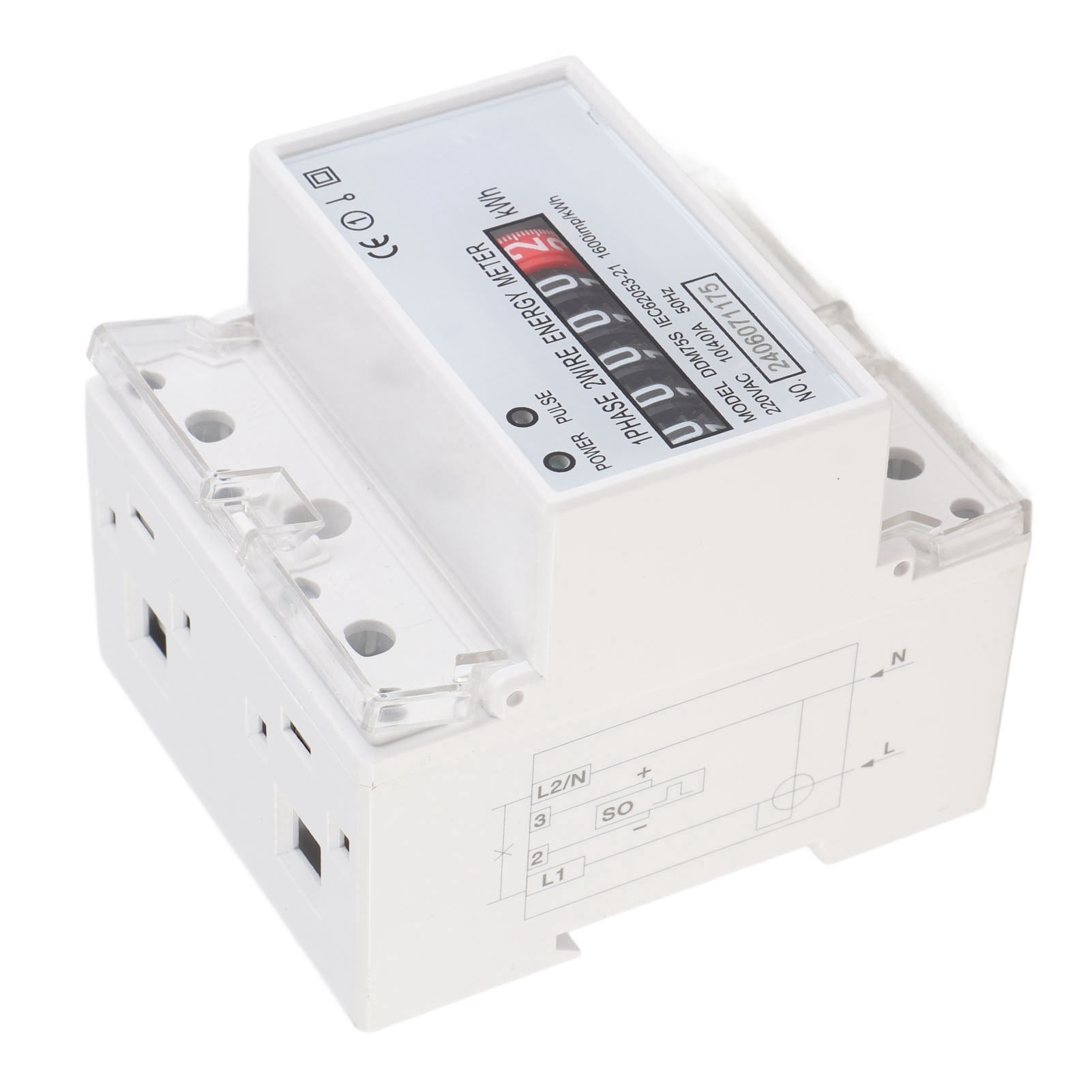

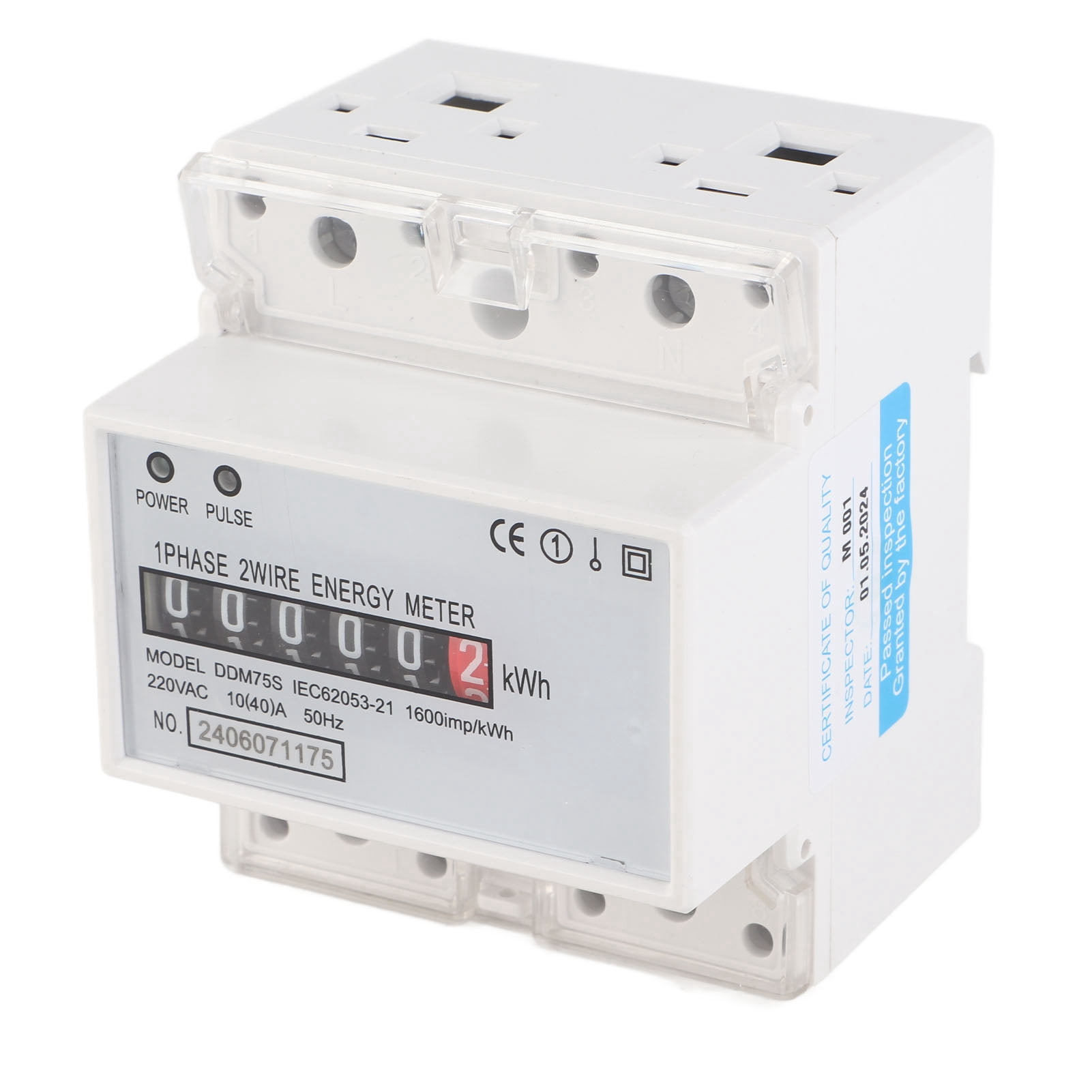

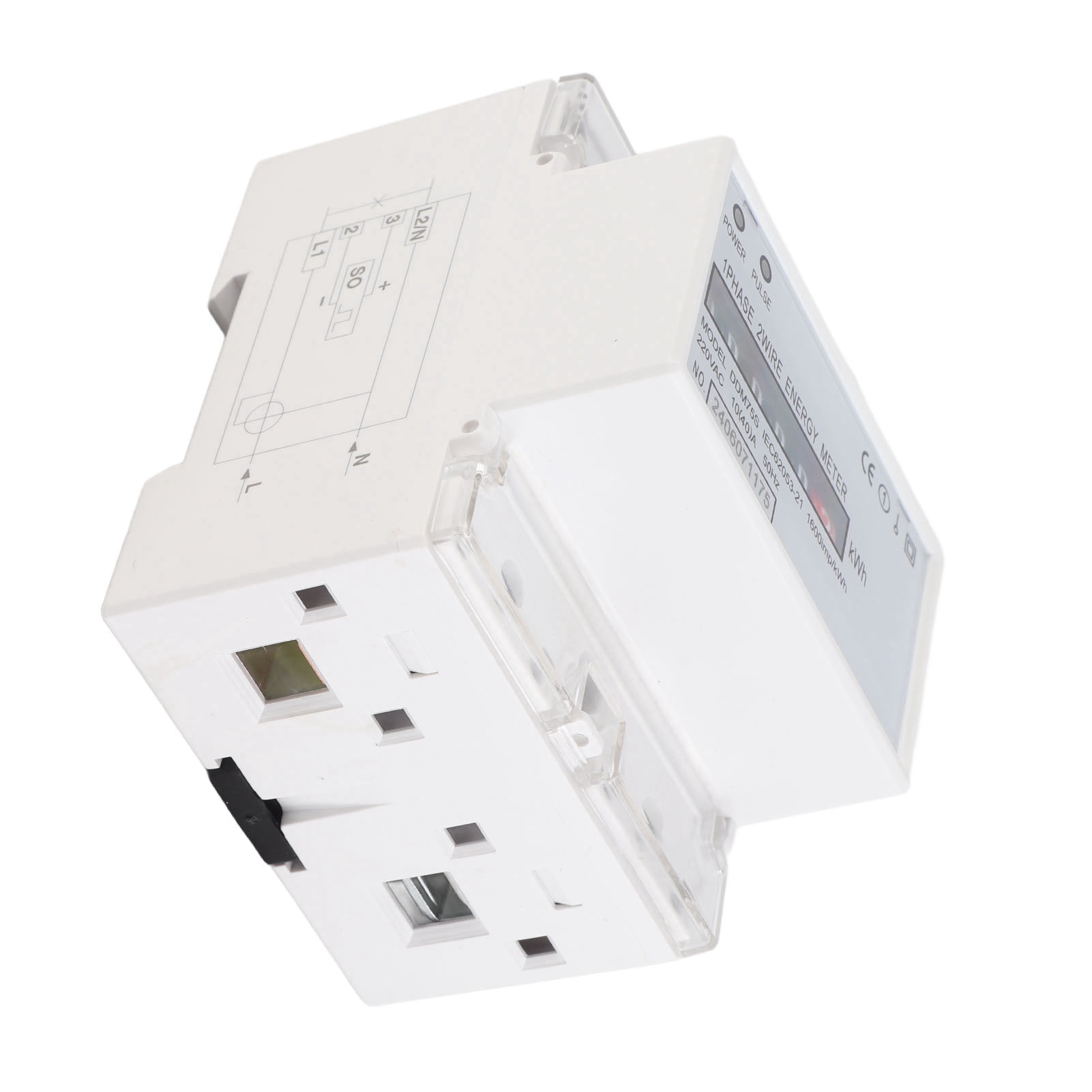

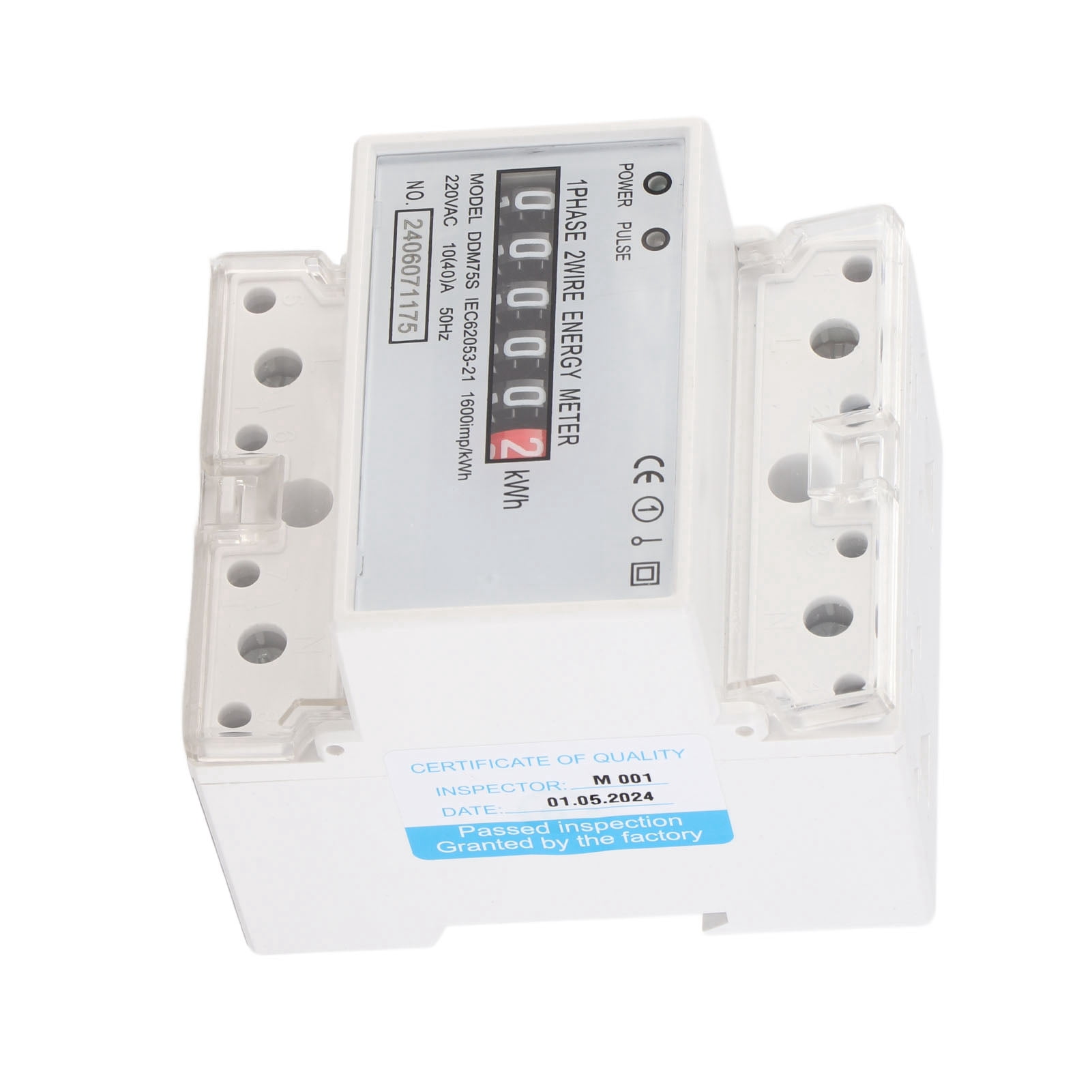

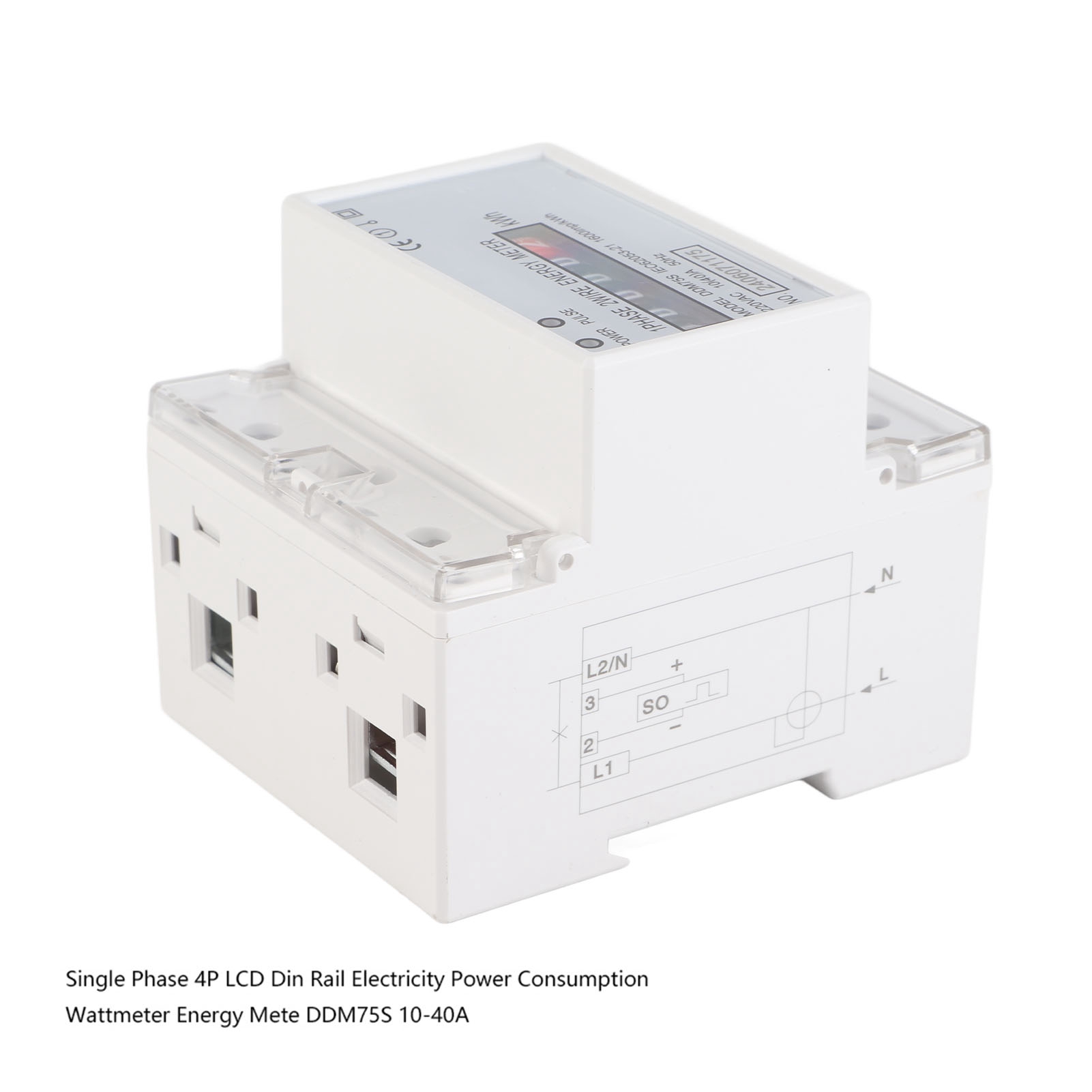

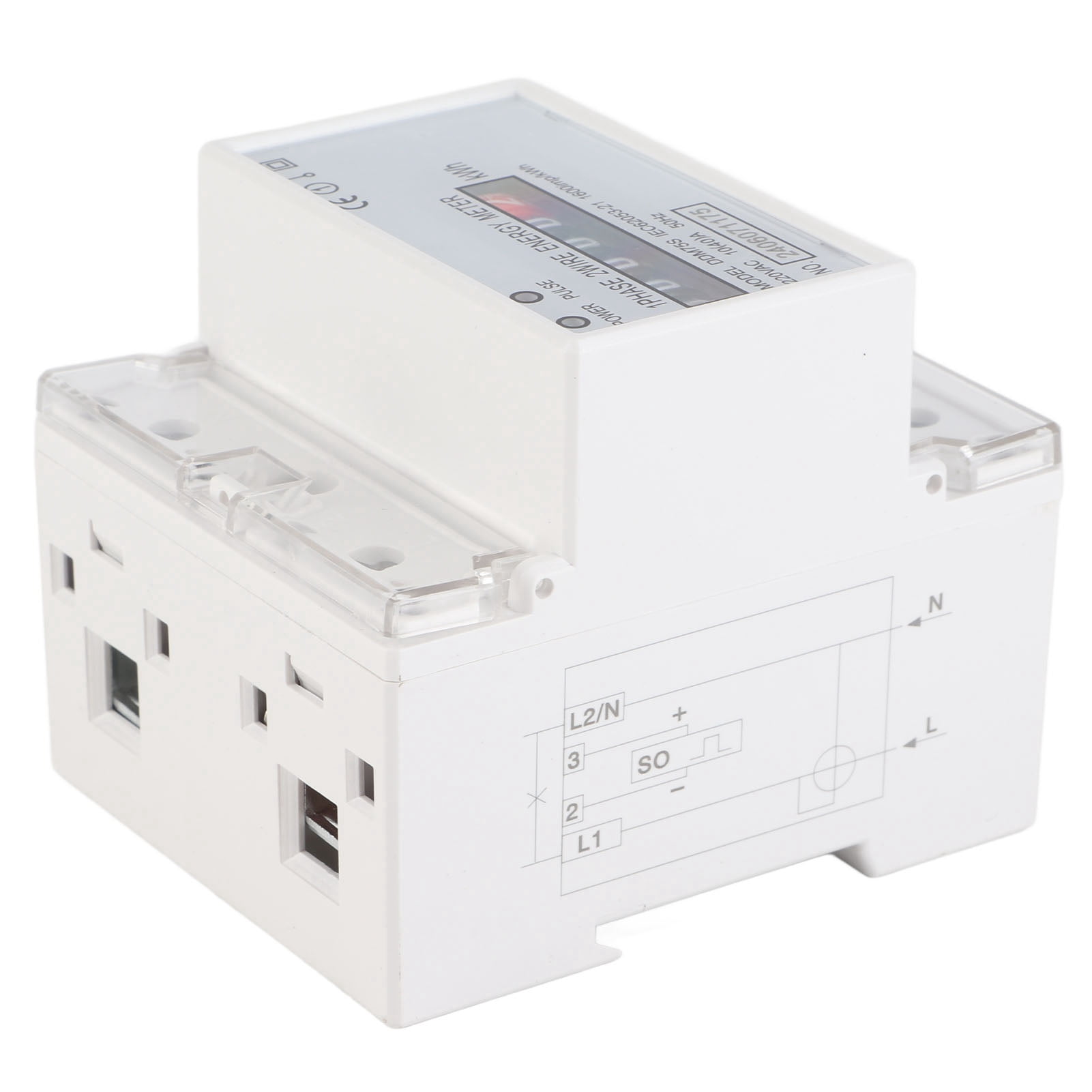

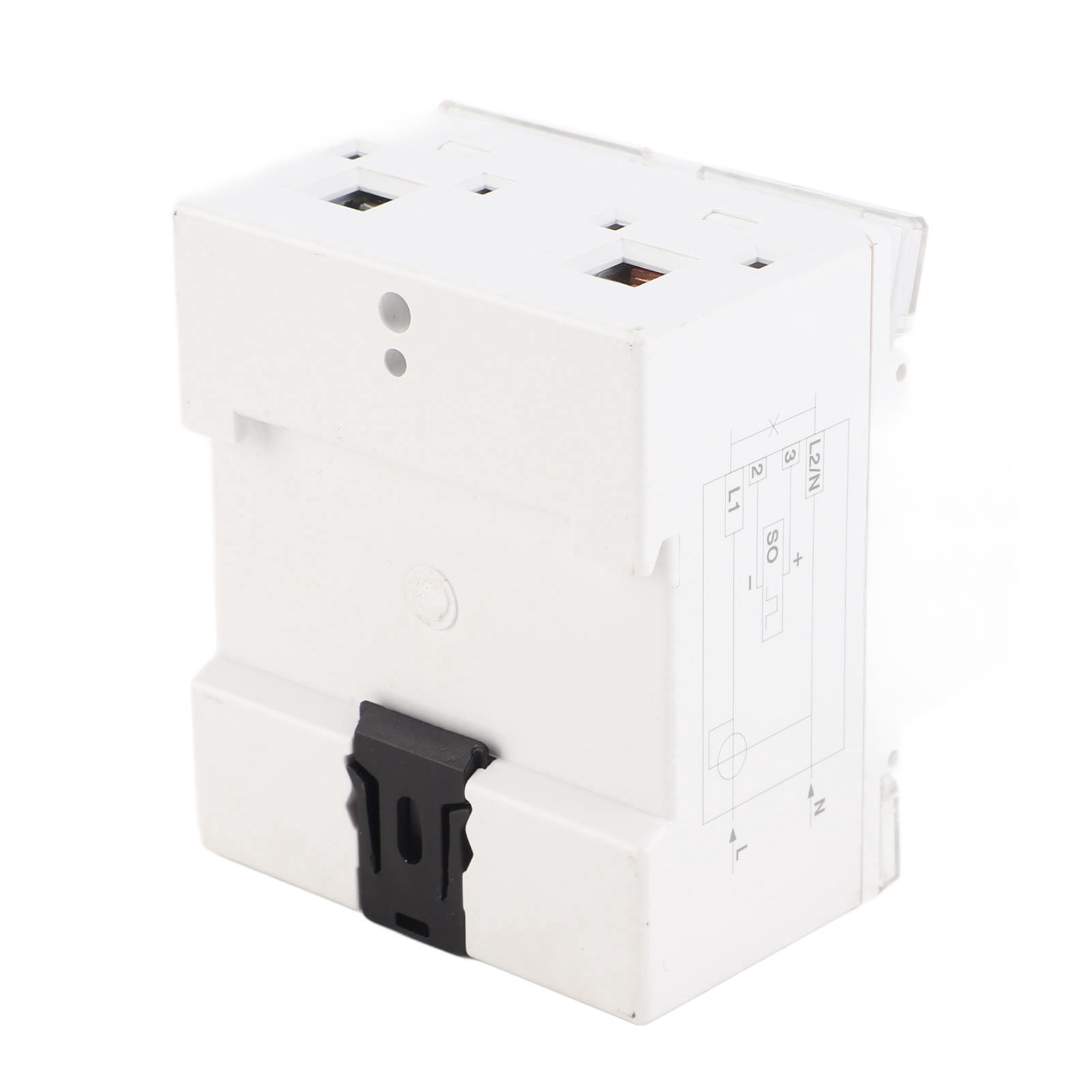

Single Phase 4P LED Din Rail Electricity Power Consumption Wattmeter Energy Mete DDM75S 10‑40A

Feature:<br>1. Small size, light weight, good reliability and easy installation.<br>2. 35mm standard DIN-rail mounting in accordance with standard DIN EN50022.<br>3. Six widths (12.5mm modulus) in accordance with DIN43880.<br>4. Standard configuration 5+1(99999.1KWh) digital display.<br>5. The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.<br><br>Specification:<br>Features: <br>Small size, light weight, good reliability and easy installation. <br>35mm standard DIN-rail mounting in accordance with standard DIN EN50022. <br>Six widths (12.5mm modulus) in accordance with DIN43880. <br>Standard configuration 5+1(99999.1KWh) digital display. <br>The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864. <br>Double color LED indicates the power status (green) and the energy pulse signal (red). <br>One-way measurement of single-phase &nbsp;two - wire active energy consumption&nbsp;. This has nothing to do with the direction of the load current. Comply with IEC 62053-21. <br>Direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected. <br>Extend the terminal cover to protect the use of the security.<br>Specification:<br>Item Type: Din Rail Energy Meter<br>Model: DDM75S<br>Voltage Specification: 220V/230V &nbsp;50/60Hz<br>Frequency: 50/60Hz<br>Current Specifications: 10(40)A &nbsp;&nbsp;<br>Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV<br>Display mode: (5+1) digital display&nbsp;<br>Installation method: rail installation<br>Weight: 246 g / 8.7 oz(approx.)<br>&nbsp;<br>Package List:<br>1 * Energy Meter <br>&nbsp;<br><br>

• Small size, light weight, good reliability and easy installation.
• 35mm standard DIN-rail mounting in accordance with standard DIN EN50022.
• Six widths (12.5mm modulus) in accordance with DIN43880.
• Standard configuration 5+1(99999.1KWh) digital display.
• The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
